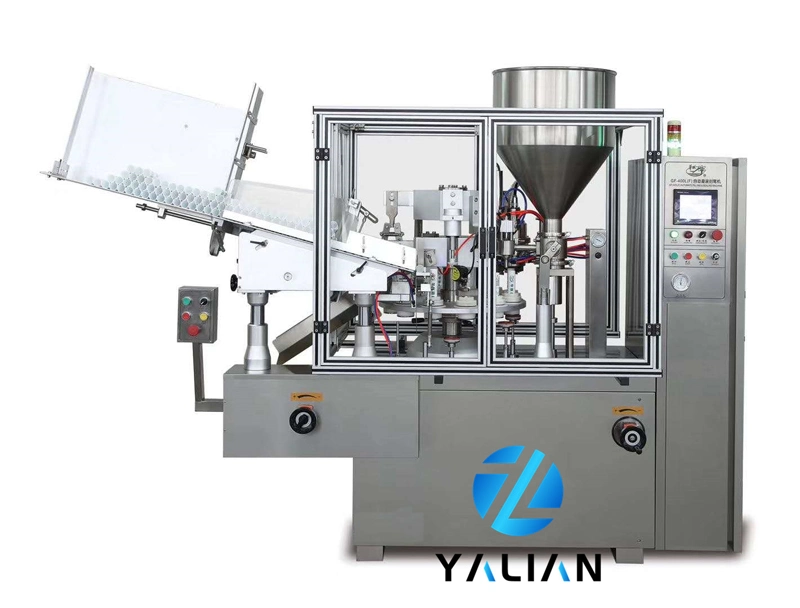

Automatic tube filling and sealing machine
Introduction:
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Features:
1.With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine. 2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure). 3.Servo control makes it precise and convenient to adjust the filling amount by touch screen. 4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy. 5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced. 6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door. 7.Three-layer jacket instant heater with inside air heating, it won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect. Semi-auto Metal Tube paste filling and sealing machine/Tube Paste Filler And Capper Semi-auto Metal Tube paste filling and sealing machine/Tube Paste Filler And Capper AB glue aluminum tube filling folding machinery Automatic hand sanitizer antiseptics and disinfectants plastic tube filling sealing machine Automatic hand sanitizer antiseptics and disinfectants plastic tube filling sealing machine Automatic hand sanitizer antiseptics and disinfectants plastic tube filling sealing machine Automatic toothpaste, ointment, cosmetic cream tube filling sealing machine Automatic toothpaste, ointment, cosmetic cream tube filling sealing machine
Chocolate Soft Glue Tube Automatic Chocolate Soft Glue Tube Filling And Sealing Machine Automatic Chocolate Soft Glue Tube Filling And Sealing Machine Tube Paste Filler And Capper Tube Paste Filler And Capper
aluminum ointment tube filling machine
Soft tube fill machine Popsicle or ice pop/ice lolly fill seal machine Soft tube fill machine Popsicle or ice pop/ice lolly fill seal machine pharmacy cosmetic filling sealing machine pharmacy cosmetic filling sealing machineChocolate Soft Glue Tube Automatic Chocolate Soft Glue Tube Filling And Sealing Machine Automatic Chocolate Soft Glue Tube Filling And Sealing Machine Tube Paste Filler And Capper Tube Paste Filler And Capper
Details:
Tichnical Date:
| Model | Yalian-F |
| Tube Material | Plastic tube, laminated tube |
| Tube Diameter | Φ5mm-Φ60mm |
| Tube Length | 50-300mm (customizable) |
| Filling Volume | 5-250ml/piece (Adjustable) |
| Filling Accuracy | ≤±1% |
| Product Capacity (Pcs/min) | 30-50 0.1m3/min |
| Air Supply | 0.55-0.65Mpa |
| Motor Power | 4kw (380V/220V 50Hz) |
| Heat Sealing Power | 5kw |
| Overall Dimension(mm) | 1600*1640*1900mm (L*W*H) |
| Machine Weight (kg) | 1100kg |
Application
This machine is widely used for fluid and semi fluid products in daily chemical industrial (Such as detergent,washing liquid, shampoo,handsoapetc.,) and It is also workable for food or pharmaceutical industrial

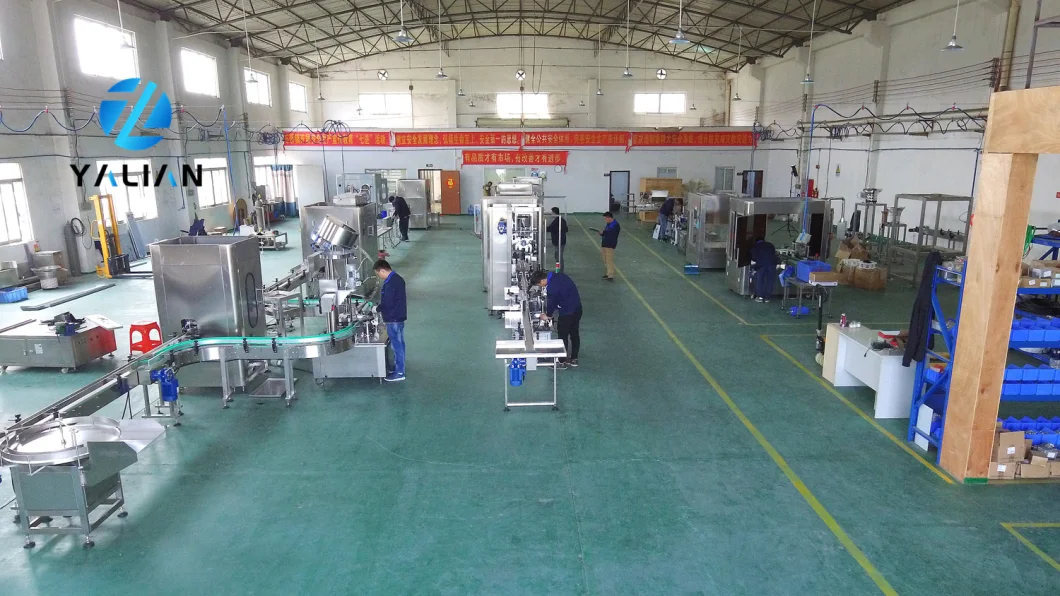

Our Testing Room Before shipping:
